Technical
| Free Passage |
60 mm |
| Power |
1.5 kW |
| Capacity m3/h |
17
|
| Pumping Height |
21 m
|
|
|
|
|
|
|
|
|
|
|
 |
KSB Amaporter leaflet (not available) |
|
|
|
|
|
|
|
|
|
|
|

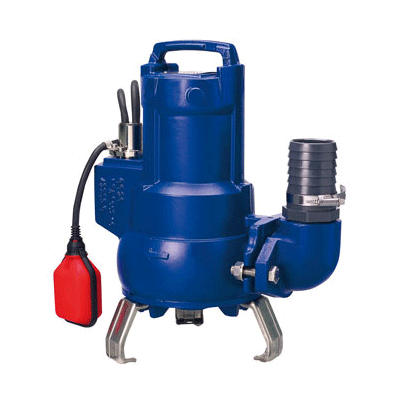

KSB Amaporter
Application
Floodable, vertical, single-stage submersible waste water pump made of cast iron, without explosion protection for pumping all kinds of waste water and sewage.
Specification
| • Type of bearing |
Ball bearings |
| • Cutter |
Yes |
| • Drive |
Electric motor |
| • Drive frequency |
50 Hz |
| • Type of drive |
Electric motor |
| • Drive voltage |
Low voltage |
| • Connection to power supply |
400 V, 3~; 230 V, 1~ |
| • Explosion protection |
OHNE |
| • No. of impeller entries |
Single entry |
| • Impeller material (EN standard) |
JL1030 |
| • Type of coupling |
None |
| • Type of lubrication |
Oil / Product lubrication |
| • Max. permissible fluid temperature |
40 °C |
| • Pump set location |
Wet well |
| • Shaft material (EN standard) |
1.4021 |
| • Suction characteristics |
Non-priming |
| • Suitable for drinking water |
Yes |
| • Type of casing |
Annular casing |
| • Type of impeller |
Free flow impeller |
| • Type of connection |
Flange |
| • UNSPSC classification |
4015150300 |
| • Casing material (EN standard) |
JL1030 |
| • eClass assignment |
36410101;36410000;36410100 |
| • Free passage |
60 mm |
| • Maximum head |
21,20 m |
| • Minimum head |
1,30 m |
| • Installation position |
Vertical |
| • Shaft seal type |
Mechanical seal;Shaft seal ring |
| • Main applications |
Water;Waste water / sewage;Building services |
| • Casing material |
Cast iron |
| • Maximum drive rating |
1,50 kW |
| • Type of installation |
Transportable;Stationary |
| • Maximum flow rate |
35,70 m³/h |
| • Maximum speed of rotation |
2.900 1/min |
|
|
|
|
|
|
